SERIES-VARIOUS AQUAHALO Installation rough - Champagne (22kt Gold)
| Product Number | 35 750 970-47 0010 |
| EAN Number | 4099477200408 |
Champagne (22kt Gold)
Product Description
| Product Number | 35 750 970-47 0010 |
| EAN Number | 4099477200408 |
| Application area | Shower |
| Brand | Dornbracht |
Product Detail
- Rough parts
- Rain panel with 3 different spray types
- AQUACIRCLE RAIN: Circular rain curtain, flow rate max. 1.8 gpm (at 3 bar)
- TEMPEST RAIN: Natural rain, flow rate max. 1.8 gpm (at 3 bar)
- DIAMOND RAIN: Rain ring, flow rate max. 1.8 gpm (at 3 bar)

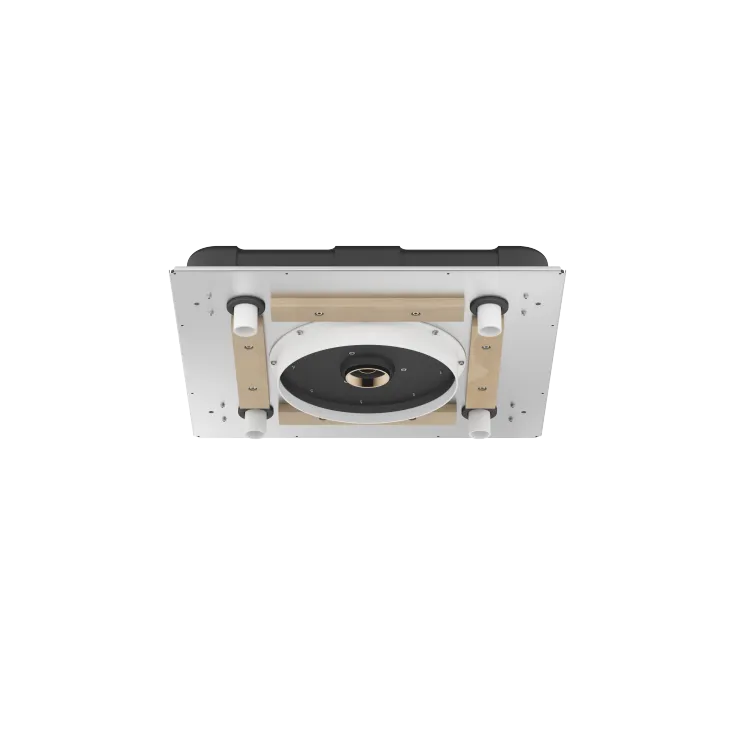

- Ceiling installation housing 23-7/8" x 23-7/8" x 3-3/4"
- Weight: 22 lbs
- Min. rough in depth 4-3/8"
- Max. rough in depth 5-7/8"
- Separate LED Power supply
- Input LED Power supply
- Input 100-240V AC 50-60Hz
- Output LED Power supply
- 350mA (CC)
- Output Specification LED Power supply
- SELV (Safety Extra Low Voltage)
- Class 2
- Ceiling module power supply
- 350mA (CC)
- Connecting cable 27-1/2"
- Spot lighting
- LED color temperature: approx. 3000 K
- Lights protected against splashing
- Includes lights rated at energy efficiency class
- Technology: LED, not dimmable
- Light switch not included
- Environment
- Not suitable for outdoor use.
- Not suitable for use in a steam room.
- Not suitable for use in chlorinated or salty environments.
- Observe the regulations concerning protected zones specified in DIN VDE 0100, Part 701 (IEC 60364-7-701).
- Pre-assembly kit for three-way diverter included
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
