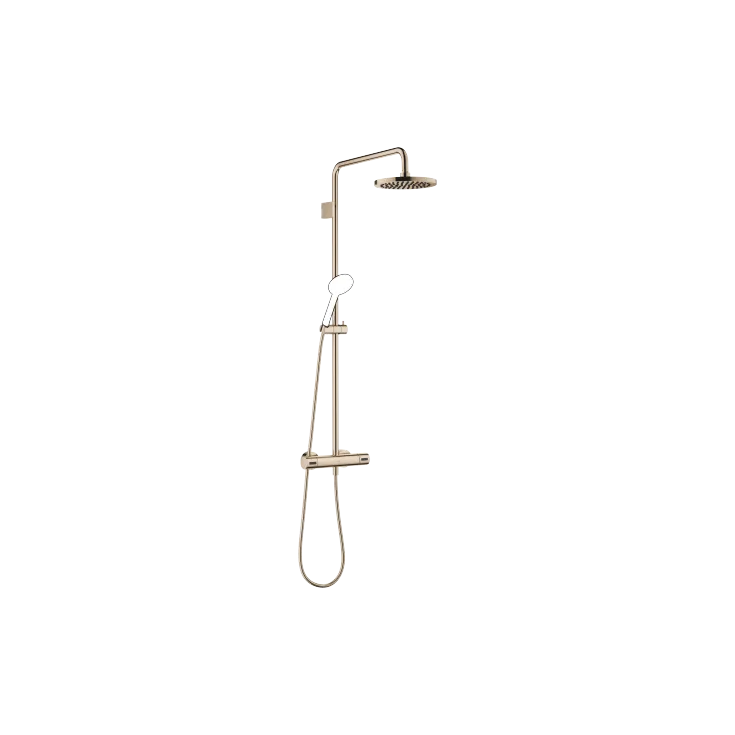

Exposed shower set with shower thermostat without hand shower - Champagne (22kt Gold)
| Product Number | 34 459 979-47 0010 |
| EAN Number | 4099477033181 |
Champagne (22kt Gold)
Product Description
| Product Number | 34 459 979-47 0010 |
| EAN Number | 4099477033181 |
| Application area | Shower |
| Construction type | Wall surface mounted |
| Flow rate Max. | 1.8 gpm |
| Brand | Dornbracht |
Product Detail
- Projection 17-7/8"
- Rainshower
- Rain shower with descaling system
- Rain shower diameter 8-5/8"
- Rain shower water flow rate limited to max. 1.8 gpm (at 3 bar)
- Diverter with integrated volume control
- Height from center of faucet to top of shower arm 45-1/4"
- Flanges Ø 2-3/4"
- Height from center of faucet to bottom of rainhead 39-3/4"
- Center to center 5-7/8" ± 1/2"
- Metal shower hose 68-7/8" with anti-twist device
- 1/2" connection
- Slide bar
- Pipe diameter 7/8"
- With drip prevention
- This product reduces water consumption by 28% (compared to requirements of EPAct '92)
- This product contributes to meeting the requirements of the LEED® Green Building Rating
- Internal backflow preventer.
- NOTE: Hand shower sold separately. Please see hand shower options under the miscellaneous articles section of each series.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
Downloads
Here you have the opportunity to download all relevant documents. Whether brochures, instructions or important information - everything is available for download. Further technical files can be found in the technical information section further down on the product page.
