Product Description

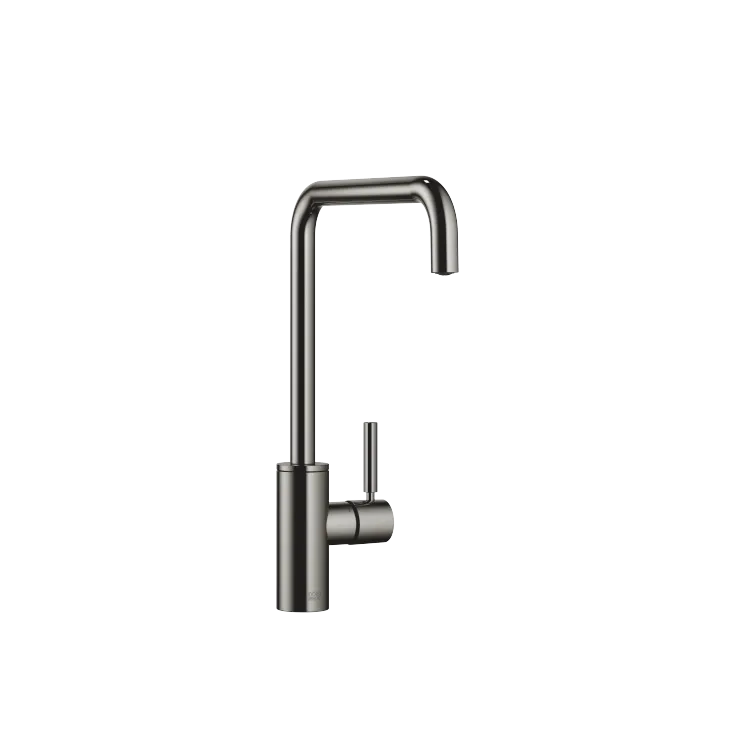

META SQUARE stands for design diversity and high combinability. The square spout elbow in combination with the otherwise round and reduced design language makes the series aesthetically durable and at the same time changeable. The focus on the essentials and a consistent reduction in volume create the typical aesthetics of this modern kitchen fitting.
Product Number | 33 815 861-19 0010 |
EAN Number | 4099477054872 |
Application area | Kitchen |
Construction type | Deck-mounted |
Flow rate Max. | 1.5 gpm |
Brand | Dornbracht |
Product Detail
- 9-1/4" Projection
- Swiveling spout 360°
- Optional restricted swivel available with swivel limiter set 12 820 970 90
- Aerated stream
- Total height 14"
- Height to aerator/spout outlet 11-1/8"
- 1-3/8" hole diameter
- 2 x pressure hose with 3/8” compression fitting
- Water flow rate limited to max. 1.5 gpm
- Lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- (ADA)
- Combination with side spray set or profi side spray set not possible.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
