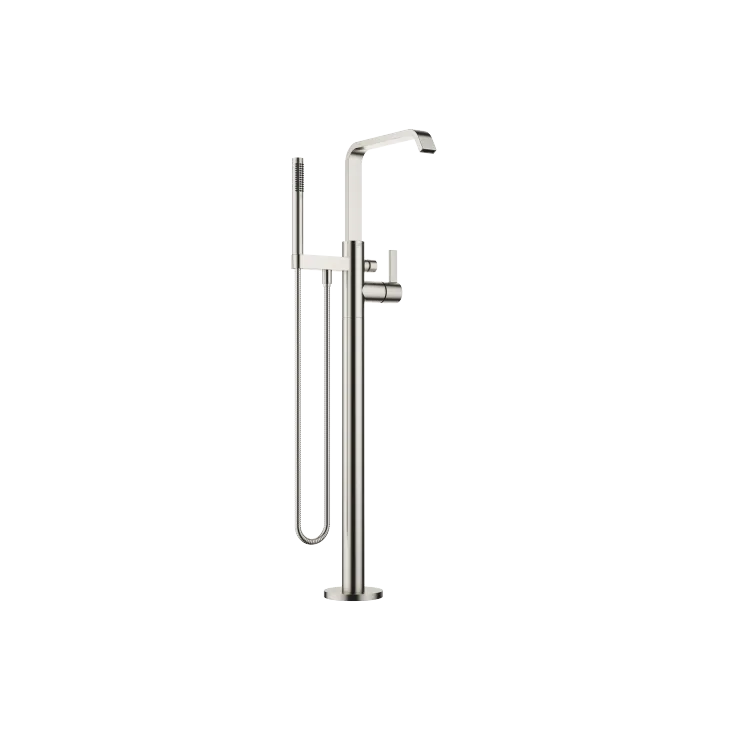

Product Description
Welcome to your bathroom. IMO unites two prevalent formal expressions, combining a round body with a rightangled lever and spout. This hybrid-shape design lends the series a universality, which appears modern, clear-cut and high-quality. IMO is the fitting for all those who want to design their bathroom themselves.
Product Number | 25 863 671-06 |
EAN Number | 4099477154879 |
Application area | Bath |
Series correlation | IMO |
Brand | Dornbracht |
Product Detail
- 279mm projection
- Spout: cascade
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Bar-type hand shower with anti-scale system
- Wall bracket
- Automatic bath/shower diverter
- Total height 943 - 1013 mm
- Stand pipe height 548 - 618 mm
- Height up to aerator 891 – 961 mm
- Metal shower hose 1250mm with integrated anti-twist protection
- Max. flow for complete hand shower set 6.8 l/min
- Slide-on rosettes Ø 135 mm
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
