Big Rain Rain Panel For Recessed Ceiling Installation Manual Control

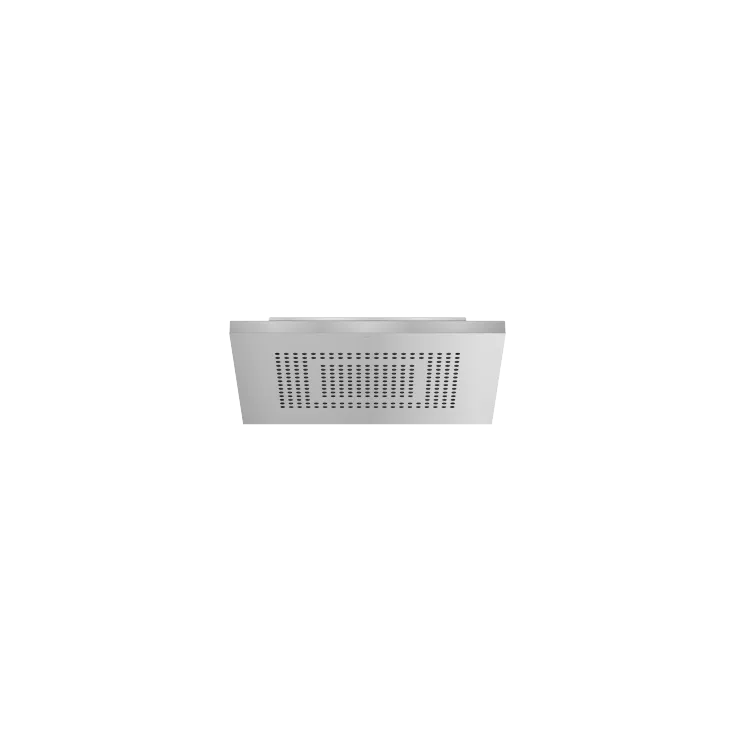

BIG RAIN Rain panel for recessed ceiling installation manual control - Brushed Stainless Steel - 41 401 979-86 0010

BIG RAIN Rain panel for recessed ceiling installation manual control - Brushed Stainless Steel

Product Number41 401 979-86 0010
EAN Number4029011836367
Finishes
Stainless Steel
Brushed Stainless Steel

Brushed Stainless Steel

Product Description

Product Number41 401 979-86 0010
EAN Number4029011836367
Application areaShower
Construction typeCeiling mounting
Flow rate Max.9.5 l/min
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • Head spray 200 x 160mm, 99 nozzles
  • Body spray 360 x 280mm, 142 nozzles
  • Cover plate, stainless steel 600 x 480 mm
  • 2x flexible connection hose 1/2" - female thread
  • 4x mounting pin
  • Pre-fitted stainless steel enclosure
  • With anti-scale system
  • Technical data:
  • Minimum flow rate 9.5 l/min (both rain modes together)
  • Flow at 3bar flow pressure in conjunction with xTOOL: 39l/min
  • Minimum flow pressure 2 bar
  • Max. flow pressure 4 bar
  • Weight: 12kg
  • Technical data:
  • Plumbing:
  • Recommended water hardness: 6-7 °dH - if the water is harder, integrate a water softener that uses the ion exchange principle into the feed pipe.
  • For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1l/sec, drainage rate DN 50
  • Feed pipe (hot/cold): 2x DN 20
  • For the optimum choice of hot water storage device - taking into consideration additional drawing-off points and the frequency with which BigRain is used - the specific demand needs to be assessed.
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Please refer to Planning Guide for proper sizing and installation methods
  • To meet the North American plumbing standards, this application must be installed with three-way diverter (rough included).
