BIG RAIN Rain panel for recessed ceiling installation manual control - Stainless Steel
| Product Number | 41 401 979-85 0010 |
| EAN Number | 4029011836350 |
Finishes
Stainless Steel
Product Description
| Product Number | 41401979-850010 |
| EAN Number | 4029011836350 |
| Application area | Shower |
| Construction type | Ceiling mounting |
| Flow rate Max. | 9.5 l/min |
| Series correlation | CL.1, IMO, LISSÉ, LULU, MADISON, MEM, META, TARA, VAIA, SERIES-VARIOUS, CYO |
| Brand | Dornbracht |
Product Detail

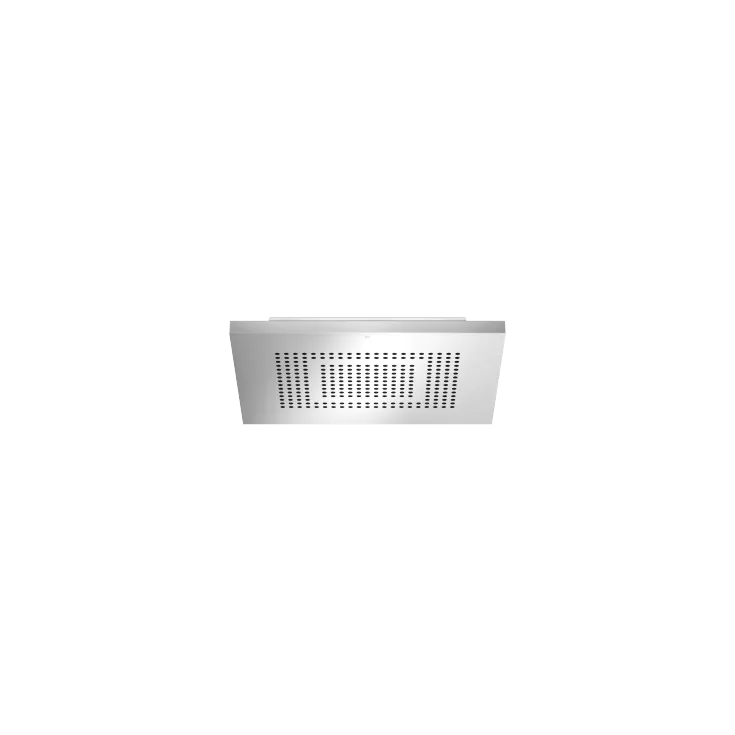

- Head spray 200 x 160mm, 99 nozzles
- Body spray 360 x 280mm, 142 nozzles
- Cover plate, stainless steel 600 x 480 mm
- 2x flexible connection hose 1/2" - female thread
- 4x mounting pin
- Pre-fitted stainless steel enclosure
- With anti-scale system
- Technical data:
- Minimum flow rate 9.5 l/min (both rain modes together)
- Flow at 3bar flow pressure in conjunction with xTOOL: 39l/min
- Minimum flow pressure 2 bar
- Max. flow pressure 4 bar
- Weight: 12kg
- Technical data:
- Plumbing:
- Recommended water hardness: 6-7 °dH - if the water is harder, integrate a water softener that uses the ion exchange principle into the feed pipe.
- For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1l/sec, drainage rate DN 50
- Feed pipe (hot/cold): 2x DN 20
- For the optimum choice of hot water storage device - taking into consideration additional drawing-off points and the frequency with which BigRain is used - the specific demand needs to be assessed.
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Must be installed with three-way diverter 35 104 970-90 0010 (rough included)
- Three-way diverter ensures that the product does not exceed the max. flow rate of 2.5 gpm at any setting. It does not permit the use of two functions simultaneously.
- Three-way diverter trim is sold separately
- Please refer to Planning Guide for proper sizing and installation methods
- Pre-assembly kit for three-way diverter included
