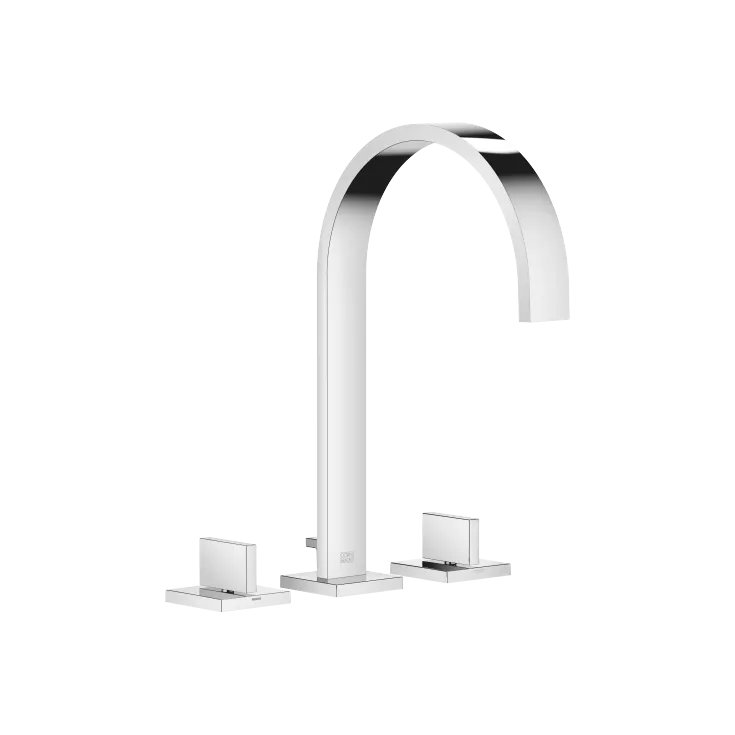

MEM Three-hole basin mixer with pop-up waste - Chrome
| Product Number | 20 715 782-00 0010 |
| EAN Number | 4029011675003 |
Chrome
Handle variant GlassDesign
-
Handle variant NatureSquared
-
Product Description
The flowing yet puristic design of MEM from Dornbracht is reminiscent of the most natural and original form of water presentation: spring. The fitting takes a deliberate step back, and by doing so, is fully taken up by the individual ambience of the architecture. The series stands for clarity, reduction, and balance, and thanks to the extensive enhancement, it now offers an even greater variety of design options.
| Product Number | 20715782-000010 |
| EAN Number | 4029011675003 |
| Application area | Basin |
| Construction type | Floor mounting |
| Flow rate Max. | 4.5 l/min |
| Series correlation | MEM |
| Brand | Dornbracht |
Product Detail
- 200mm projection
- Fixed spout
- 1 1/4" pop-up waste
- Rectangular, air-enriched flow
- Height of mixer 320 mm
- Height up to aerator 195 mm
- Hole diameter spout 35 mm
- Hole diameter valve 32 mm
- Rosette 60 x 60 mm
- 2x screw-in M 10 x 1 pressure hose, leak-tested
- Max. flow 4.5 l/min
- Lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Only suitable for basins with an overflow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
