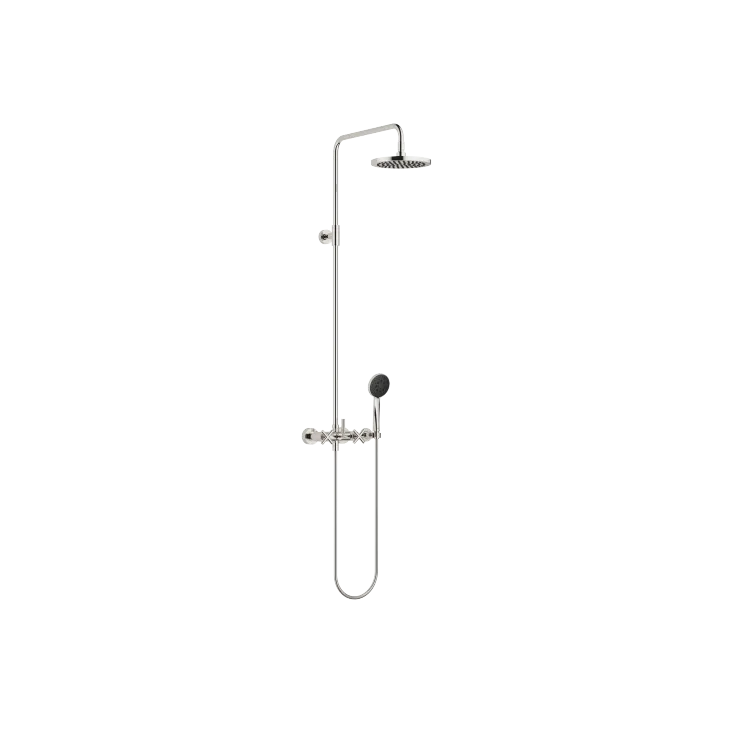

TARA Showerpipe 220 mm - Platinum - Set containing 2 articles

TARA Showerpipe 220 mm - Platinum

Product NumberSet containing 2 articles

Finishes
Chrome
Brushed Platinum
Platinum
Dark Chrome
Brushed Light Gold
Brushed Durabrass (23kt Gold)
Matte Black
Brushed Bronze
Brushed Champagne (22kt Gold)
Champagne (22kt Gold)
Brushed Chrome
Brushed Dark Platinum

Platinum


Product Description

Product NumberSet containing 2 articles
Application areaShower
Flow rate Max.14 l/min
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • Shower with fixed riser projection 420mm
  • Rain shower: PURE RAIN, max. flow rate 14 l/min (at 3 bar)
  • Rain shower Ø 220 mm
  • Rain shower with anti-scale system
  • Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
  • Spray head Ø 100mm
  • Rotary diverter for fixed-riser shower/hand shower
  • Height of fittings up to rain shower (bottom edge) 1007mm
  • Height of fittings up to top edge of elbow 1167mm
  • Rosette for shower holder Ø 55mm
  • Rosette for wall mounting Ø 57mm
  • Rosette for shower mixer Ø 65mm
  • Gauge 150 mm - 13 mm
  • 1500 mm metal shower hose
  • 1/2" connection
  • Pipe diameter 20 mm
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Intrinsic protection against back flow.
