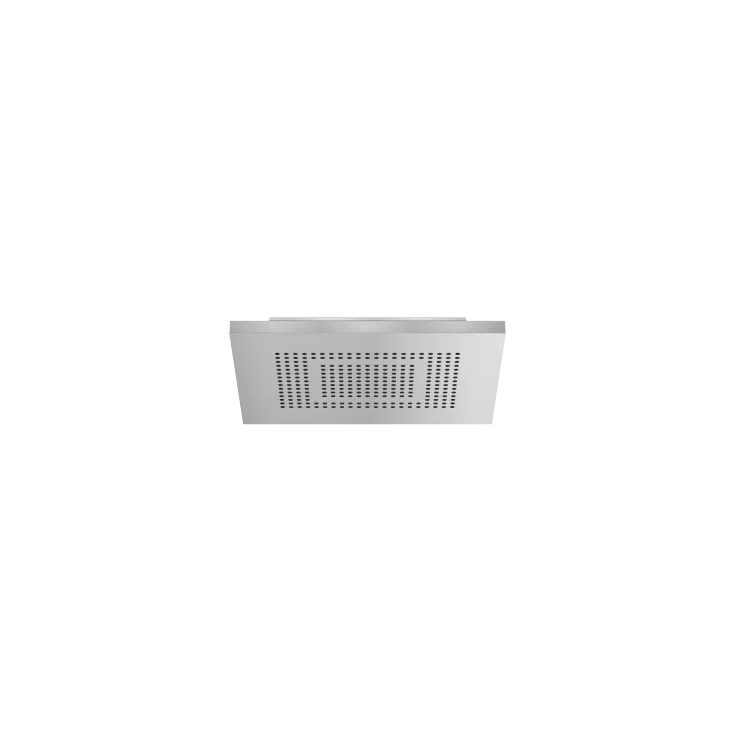

BIG RAIN Rain panel for ceiling installation or ceiling substructure installation - Brushed Stainless Steel
| Product Number | 41 400 979-86 0050 |
| EAN Number | 4099477064567 |
Finishes
Brushed Stainless Steel
Product Description
| Product Number | 41 400 979-86 0050 |
| EAN Number | 4099477064567 |
| Flow rate Max. | 9.5 l/min |
| Brand | Dornbracht |
Product Detail
- Rain panel with 2 different spray modes
- PURIFY RAIN, 200 x 160 mm, max. flow rate 9.5 l/min (at 3 bar)
- FULL RAIN, 360 x 280 mm, max. flow rate 9.5 l/min (at 3 bar)
- Cover plate, stainless steel 600 x 480 mm
- 2x flexible connection hose 1/2" - female thread
- 4x mounting pin
- Pre-fitted stainless steel enclosure
- With anti-scale system
- Technical data:
- Minimum flow rate 9.5 l/min (both rain modes together)
- Minimum flow pressure 2 bar
- Max. flow pressure 4 bar
- Weight: 12kg
- Technical data:
- Plumbing:
- Recommended water hardness: 6-7 °dH - if the water is harder, integrate a water softener that uses the ion exchange principle into the feed pipe.
- For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1l/sec, drainage rate DN 50
- Feed pipe (hot/cold): 2x DN 20
- For the optimum choice of hot water storage device - taking into consideration additional drawing-off points and the frequency with which BigRain is used - the specific demand needs to be assessed.
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Three-way diverter trim is sold separately
