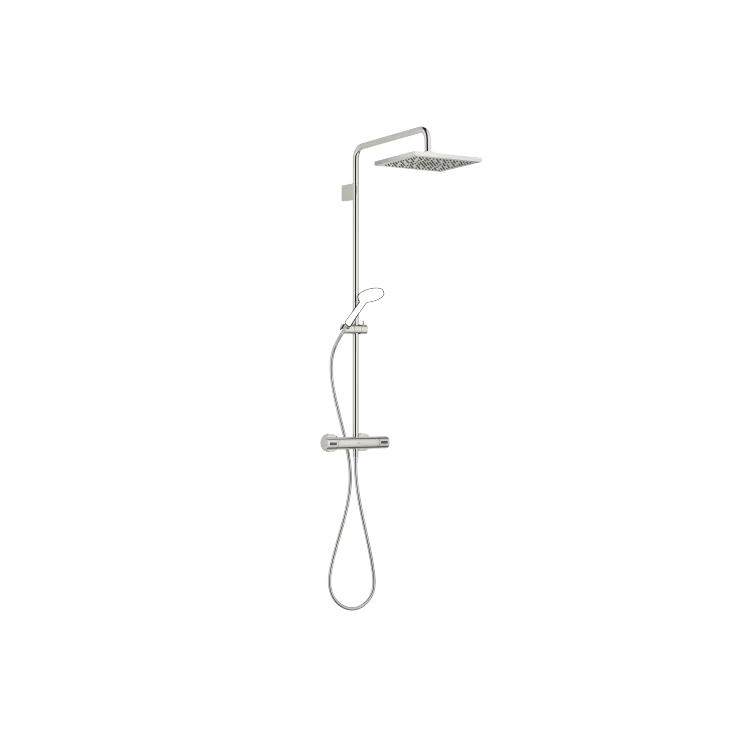

Showerpipe with shower thermostat without hand shower - Platinum
| Product Number | 34 459 980-08 0050 |
| EAN Number | 4099477063621 |
Finishes
Platinum
Product Description
| Product Number | 34 459 980-08 0050 |
| EAN Number | 4099477063621 |
| Application area | Shower |
| Construction type | Surface wall mounting |
| Flow rate Max. | 6.8 l/min |
| Brand | Dornbracht |
Product Detail
- Shower with fixed riser projection 453mm
- Overhead shower: rain flow
- Rain shower 300 x 240mm
- Rain shower with anti-scale system
- Max. rainshower flow 14 l/min
- Rotary diverter with volume control and shut-off function
- Slide-on rosettes Ø 70 mm
- Height of fittings up to rain shower (bottom edge) 1009mm
- Height of fittings up to top edge of elbow 1150mm
- Gauge 150 mm - 13 mm
- Metal shower hose 1750mm with integrated anti-twist protection
- 1/2" connection
- Slide bar
- Pipe diameter 23.5 mm
- Quick clearing
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Intrinsic protection against back flow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
