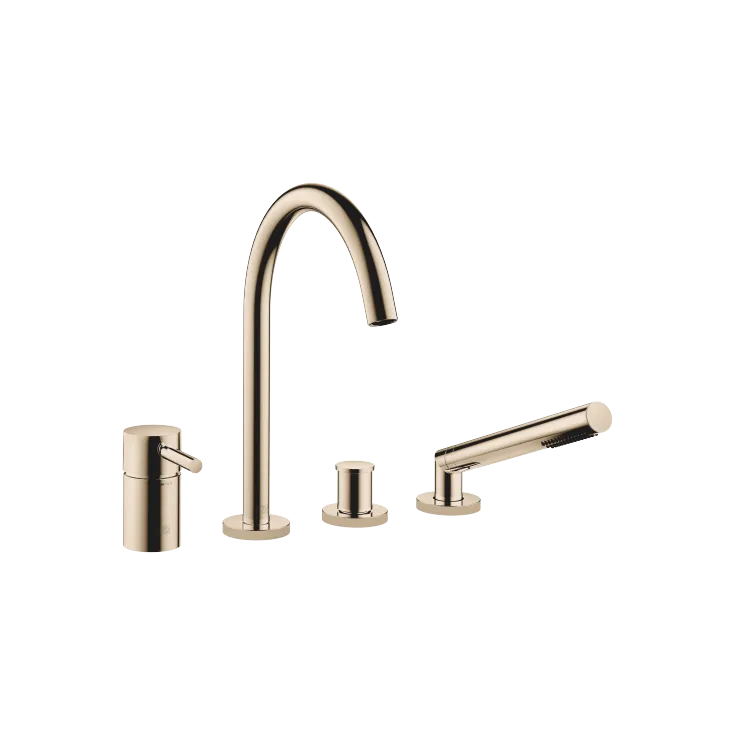

META Bath shower set for bath rim or tile edge installation - Light Gold
| Product Number | 27 632 661-26 0050 |
| EAN Number | 4099477186733 |
Light Gold
Product Description
META embodies versatility and true style at the same time. It enables the expression of personality and attitude. A trusted design that combines modern minimalism with aesthetic durability.
| Product Number | 27 632 661-26 0050 |
| EAN Number | 4099477186733 |
| Application area | Bath |
| Construction type | Floor mounting |
| Flow rate Max. | 25.2 l/min |
| Brand | Dornbracht |
Product Detail
- Spout: circular, air-enriched flow
- Max. flow 23.5 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Complete hand shower set with anti-scale system
- Automatic bath/shower diverter
- 221mm projection
- Height of mixer 319 mm
- Height up to aerator 216 mm
- Hole diameter spout 35 mm
- Hole diameter single-lever mixer 35 mm
- Hole diameter for complete hand shower set 32 mm
- Rosette for spout Ø 60mm
- Rosette for single-lever mixer Ø 55mm
- Rosette for complete hand shower set Ø 60mm
- Metal shower hose 1750mm with integrated anti-twist protection
- Intrinsic protection against back flow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
Downloads
Here you have the opportunity to download all relevant documents. Whether brochures, instructions or important information - everything is available for download. Further technical files can be found in the technical information section further down on the product page.
