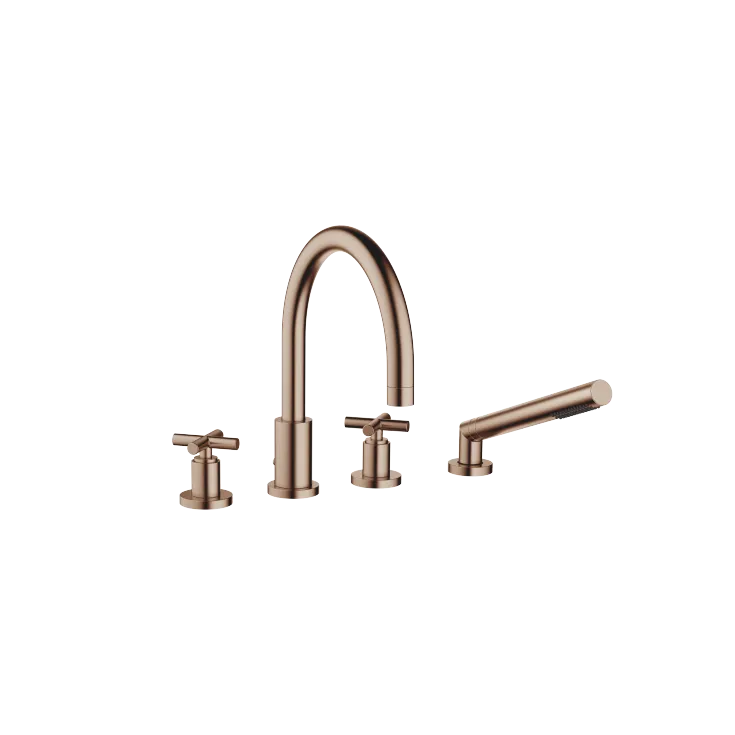

TARA Bath shower set for bath rim or tile edge installation - Brushed Bronze
| Product Number | 27 512 892-42 0050 |
| EAN Number | 4099477248172 |
Brushed Bronze
Product Description
| Product Number | 27 512 892-42 0050 |
| EAN Number | 4099477248172 |
| Application area | Bath |
| Construction type | Floor mounting |
| Brand | Dornbracht |
Product Detail
- Spout: circular, air-enriched flow
- Max. flow 23.5 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Complete hand shower set with anti-scale system
- 220mm projection
- Automatic bath/shower diverter
- Height of mixer 290 mm
- Height up to aerator 135 mm
- Hole diameter spout 32 mm
- Hole diameter valve 32 mm
- Hole diameter for complete hand shower set 32 mm
- Rosette for spout Ø 55mm
- Rosette for complete hand shower set Ø 50mm
- Rosette for deck valve Ø 55mm
- Metal shower hose 2250mm with integrated anti-twist protection
- Also available with 260 mm or 300 mm projection on request (x-TRA SERVICE).
- Intrinsic protection against back flow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
