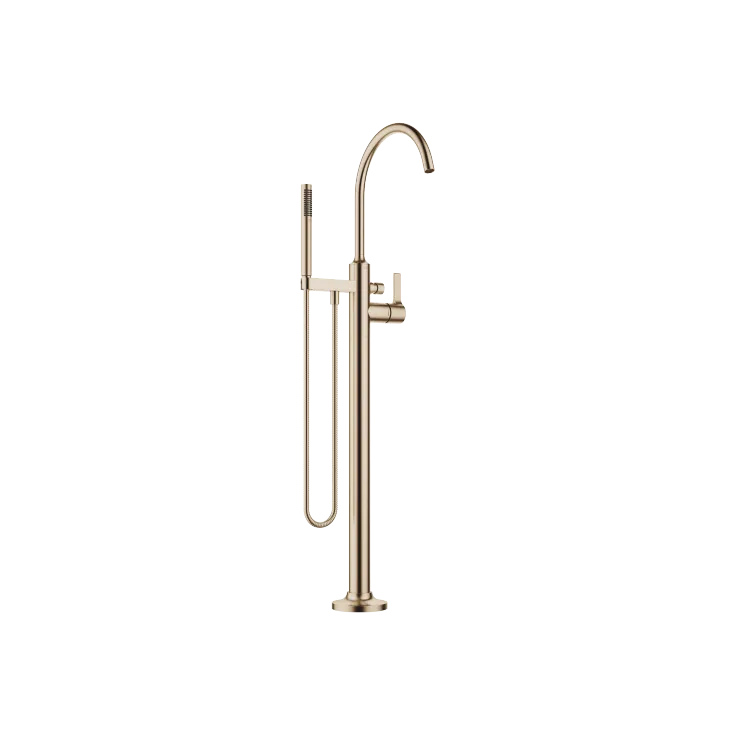

VAIA Single-lever bath mixer with stand pipe for free-standing assembly with hand shower set - Brushed Champagne (22kt Gold)
| Product Number | 25 863 809-46 0050 |
| EAN Number | 4099477226538 |
Brushed Champagne (22kt Gold)
Product Description
VAIA unites traditional elegance with modern-day clarity in our Transitional Style. The use of various finishes enables VAIA to blend into many different contemporary interiors: in both traditional and modern-minimalistic bathroom architectures as well as those combining elements of different styles.
| Product Number | 25 863 809-46 0050 |
| EAN Number | 4099477226538 |
| Application area | Bath |
| Construction type | Free-standing assembly |
| Flow rate Max. | 25.2 l/min |
| Brand | Dornbracht |
Product Detail
- Spout: circular, air-enriched flow
- Max. flow 24.6 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 8 l/min (at 3 bar)
- Bar-type hand shower with anti-scale system
- 281mm projection
- Pivotable spout 360°
- Wall bracket
- Automatic bath/shower diverter
- Total height 1057 - 1127 mm
- Stand pipe height 565 - 635 mm
- Height up to aerator 925 – 995 mm
- Slide-on rosettes Ø 135 mm
- Metal shower hose 1250mm with integrated anti-twist protection
- Intrinsic protection against back flow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
