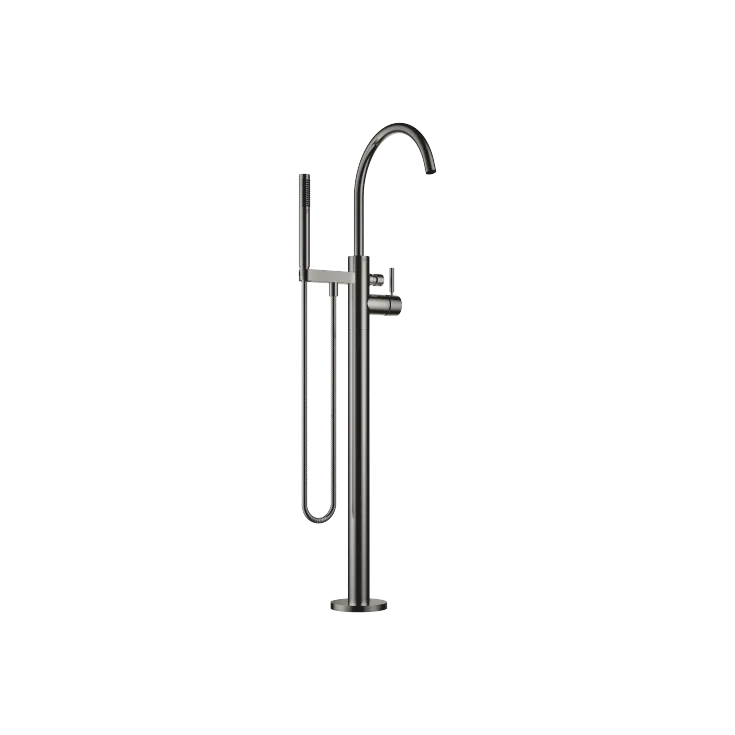

Single-lever bath mixer with stand pipe for free-standing assembly with hand shower set - Dark Chrome
| Product Number | 25 863 661-19 0050 |
| EAN Number | 4099477226514 |
Dark Chrome
Product Description
| Product Number | 25 863 661-19 0050 |
| EAN Number | 4099477226514 |
| Application area | Bath |
| Construction type | Free-standing assembly |
| Brand | Dornbracht |
Product Detail
- Spout: circular, air-enriched flow
- Max. flow 19.5 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 8 l/min (at 3 bar)
- Bar-type hand shower with anti-scale system
- Pivotable spout 360°
- Wall bracket
- 281mm projection
- Automatic bath/shower diverter
- Total height 1031 - 1101 mm
- Stand pipe height 565 - 635 mm
- Height up to aerator 899 – 969 mm
- Slide-on rosettes Ø 135 mm
- Metal shower hose 1250mm with integrated anti-twist protection
- Intrinsic protection against back flow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
