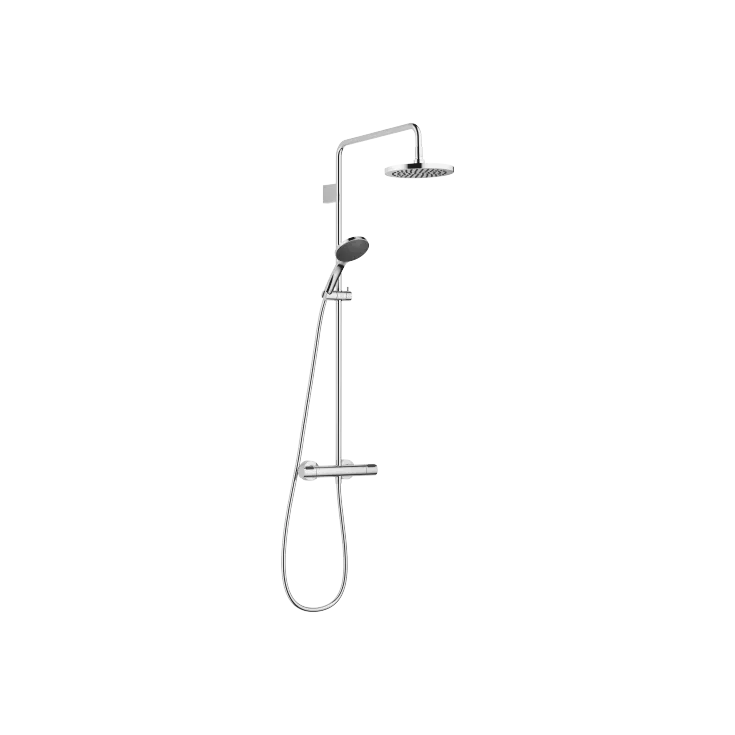

Shower pipe with shower thermostat with hand shower set FlowReduce
| Product Number | 34 466 979-00 0010 |
Finishes
Chrome
Product Description
| Product Number | 34 466 979-00 0010 |
| Flow rate Max. | 6.8 l/min |
| Brand | Dornbracht |
Product Detail
- Rain shower:
- Rain shower Ø 220 mm
- Material rain shower: plastic
- PURE RAIN, max. flow rate 5 l/min (at 3 bar)
- Function from: l/min
- Rain shower with anti-scale system
- Hand shower:
- Spray head Ø 120mm
- COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Hand shower with anti-scale system
- Inherently safe from back flow
- Control element:
- Rotary diverter with volume control and shut-off function
- Plastic hose, 1750 mm, with integrated anti-twist protection
- Slide bar
- Technical dimensions:
- Shower with fixed riser projection mm
- Height of fittings up to rain shower (bottom edge) mm
- Height of fittings up to top edge of elbow mm
- Slide-on rosettes Ø 70 mm
- Gauge 150 mm - 13 mm
- Pipe diameter 20 mm
- 1/2" connection
- Notes:
- This product reduces water consumption by 28% (compared to requirements of EPAct '92)
- This product can contribute to Water Use Reduction in LEED® Green Building Rating
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
