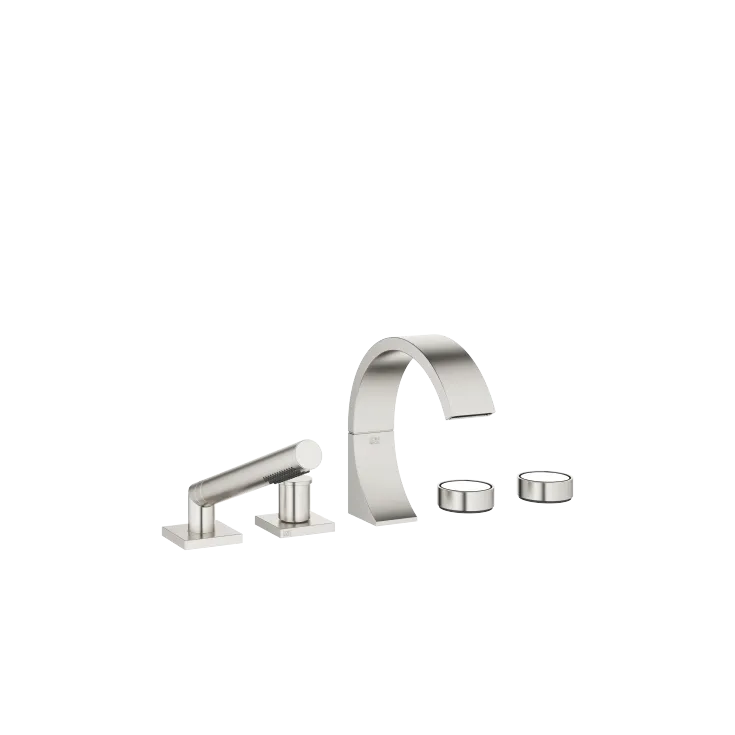

CYO Five-hole bath mixer for bath rim or tile edge installation - Brushed Platinum
| Product Number | 27 523 811-06 |
| EAN Number | 4029011930225 |
Brushed Platinum
Product Description
Our new CYO fittings series combines Dornbracht design history with the current spirit of the age – aspiring, as always, to create lasting values. You think you know the design language, yet the effect is unseen and forward looking. A commanding statement in both progressive and classic bathrooms.
| Product Number | 27 523 811-06 |
| EAN Number | 4029011930225 |
| Application area | Bath |
| Construction type | Floor mounting |
| Brand | Dornbracht |
Product Detail
- 167mm projection
- Rectangular, air-enriched flow
- Height of mixer 198 mm
- Height up to aerator 133 mm
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Complete hand shower set with anti-scale system
- Hole diameter spout 32 mm
- Hole diameter valve 32 mm
- Rosette for complete hand shower set 60 x 60mm
- Handle Ø 60mm
- Metal shower hose 1750mm with integrated anti-twist protection
- Max. flow 23.8 l/min at 3 bar flow pressure
- WRAS
- NOTE: The handle inserts must be ordered separately from the fittings!
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
